Modular Emergency Shelters

As they are build in a factory once on site they fit together very quickly. These modular units are mounted on bases made from welded steel and can be quickly put in position on a concrete pad. They can be finished in many styles to suit a variety of needs such as hospitals, clinics, schools, offices, homes, retail units and they are designed to be earthquake and storm proof.

They will last for 30 years and even can be dismantled and moved to another site should demographic needs change significantly.

• Transportable, suitable for containers.
• A self levelling palletised flat-pack kit.
• Easily erectable with its palletised based.
• Quick to build using its integral flooring.
• Is easy to deconstruct, relocate and re-erect.
• Designed for space saving storage.
• A modular construction, to fit any design.
• Simple to modify for future needs.
• Not reliant on mechanised transport.
• Lightweight - can be carried by 2 persons.
• Ideal for assembly by local people.
• Can be assembled using only hand tools.
• Made from recycled PVC - will last for many years.
• Flame retardant, rated as Class 0.
• Units can be linked together.

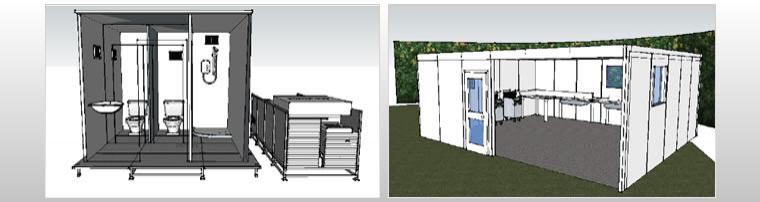

• Systems can include shower units, toilet blocks and kitchens.
• Optional roof-mounted solar panels.

Units are produced in a range of multi-functional shelters from a 1.5m by 1.5m toilet / shower box through to a 7m by 5m clinic / classroom.

Unit 50220

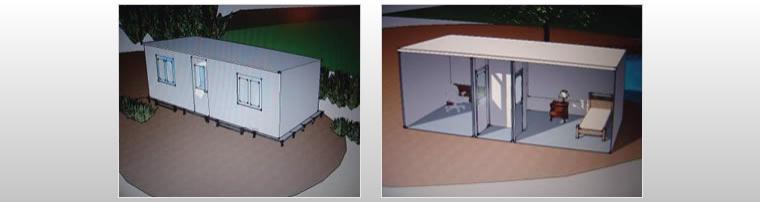

This is a multi-function shelter designed to provide a dual area space for lounge / sleeping; office / sleeping or the like. The image below has had the front wall removed to show more clearly the internal configuration. As with all units differing levels of security and refinement are available.

The unit comes with internal electrical services provided. Connection to external services will be required on site. It is fitted with windows,
external door and internal doors.

Where sanitary facilities are required either a toilet unit can be provided separately or can be specified within a Unit.
2 people could easily erect the unit in half a day with little skills and only basic tools required

This unit is constructed of recycled PVC providing a structurally sound, hygienic, double skinned (thermally efficient), environment. Panels have a fire rating of BS476 part 6 and 7 - class 0, surface spread of flame.

Weight of Unit 50220:	420kg

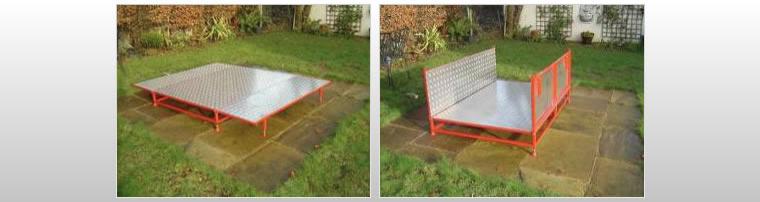

Weight of 50225 Metal Base:	192kg
Dimensions of 50220 Pallet:	1125mm (H) 1180mm (W) 2300mm (L)

10 units fit into a single 20ft ISO Shipping Container.

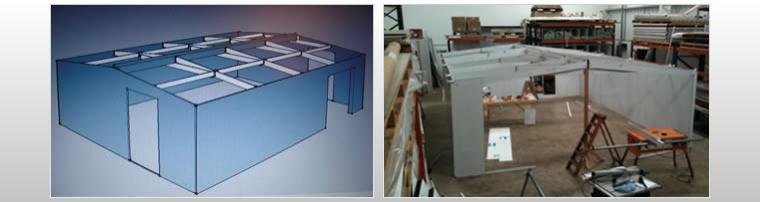

Unit 7050

Construction of the 7050 appears traditional but uses a technologically advance panel that is fire rated with a half hour fire barrier.

Unit 7050 is designed to be easily transportable and easily erectable using only hand tools.
The construction of 7050 will take 2 people about 6 hours and requires:

1. a small ladder
2. a 19mm spanner
3. a cross-hand screwdriver
4. 2, temporary supports (supplied with kit)
